1)Introduction

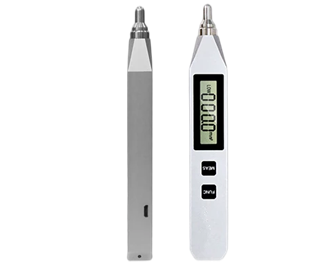

ZX-63E  is  a  precise  rechargeable  pen  type  vibration  measuring

instrument.  The  product  has  features  as  following,convenient  to
carry,fine appearance,easy to operate and small and light.The
fuselage is made of high strength aluminum alloy CNC, with anti -
shock .The product mainly used for the equipment such as motor, fan,
pump, compressor and rapid maintenance of machine tools and other
mechanical equipment . Preventive inspection of mechanical
equipment failure;It is especially suitable for inspectors.The vibration
measurements are shown directly by three and a half liquid
crystals.The measurement should be kept in close contact with the
surface of the object, and the pressure is about 5-20n.The instrument

can measure acceleration, speed and displacement.

2)Technical Parameters

Model：ZX-63E

Measurement function: acceleration/velocity/displacement

Work Environment ：Temperature 0 degrees ~40 degrees, relative humidity 30~90RH

Fequency Range：accelerated speed：10Hz～1KHz（L0W）

1KHz～15KHz(HI)

speed : 10Hz ～ 1KHz

displacement ：10Hz～500Hz

Range of Measurement ：

accelerated speed：0.1～199.9m/s² Peak(RMS×1.414)

speed：0.1～199.9 mm/s RMS

displacement：0.001～1.999 mm P-P(RMS×2.828)

Measuring accuracy: accuracy: ±5% + 2 word reading (% + word), calibration period for one year；

Display mode: 3 semi-liquid crystal display

Standard of Security : GB 4793.1—2007

Pollution level: level 2

Power : built-in 3.7V lithium battery, full of electricity use about 30 hours

Size：152mmx23mmx12mm(LxWxH）

Weight：75g
